JUNCTION BOX

The Explosion Proof Equipment Solution



WIN700 Series ATEXIECEXKCs

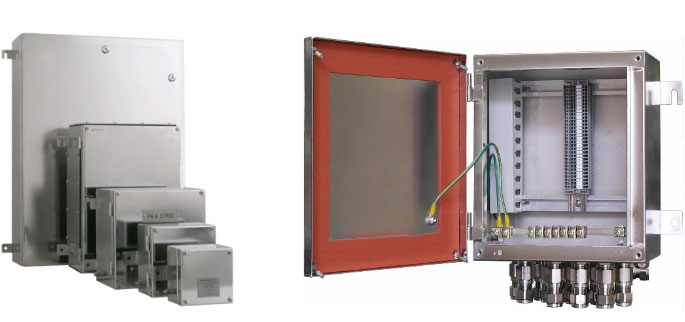

WIN700 Series is hinged junction box designed to be locked by bolts. It can endure in hostile environments(such as offshore, petrochemical sites, and electrical plants) and preserve inner components with optimal condition. WIN700 series is divided into 16 sizes and basically made up of stainless steel or sheet steel with coating. Upon the customers’ requisition, it can be made with/without hinges, gland plate(s), terminal block(s), cable gland(s), and other accessories and provides the best explosion proof solutions for the customers in accordance with the IP and Ex. grades


Material Body & Lid Min.1.5mm 304, 316/316L Stainless steel Or Sheet Steel
Gland plates 3.0mm 304, 316/316L Stainless steel Or Sheet Steel
Finish Hairline (SUS) / Coating (STEEL) (Or customer specifications)
Gasket CR / Silicone
Lid fixing Fully detachable hinged lid with Flat handle or M6 hexagonal captive screws
Earthing M8 Internal/External earth stud
Wall mounting 4-external lugs with 12mm clearance holes/slot or self standing
Equipment inside mounting Stand off pillars M6 / M8 / M10
Ambient Temperature T6= -40˚C to +40˚C
T5= -50˚C to +55˚C
Impact energy 7Nm
Grade Ex eb IIC T6/T5 IP66 - IECEx
Ex eb IIC T5/T6 Gb IP66, Ex tD A21 T5/T6 IP66 - ATEX
Ex e IIC T6/T5 - KCs



MODEL TYPE OVERALL DIMENSION MOUNTING DIMENSION Max. Power Consumption Remark
W H D W1 H1 Φ
WIN 701 150 150 100/120 200 - 12 4.83W
WIN 702 200 200 120/160 250 - 12 6.30W
WIN 703 260 260 160/200 310 160 12 10.04W
WIN 704 300 300 160/200 350 200 12 11.27W
WIN 705 260 380 160/200 310 200 12 11.89W
WIN 706 400 400 160/200 450 400 12 16.93W
WIN 707 350 500 160/200/250 400 400 12 18.33W
WIN 708 500 500 160/200/250 550 400 12 24.32W
WIN 709 450 620 200/250/300 500 520 12 25.98W
WIN 710 550 740 200/250/300 600 640 12 31.61W
WIN 711 640 860 200/250/300 690 760 12 35.62W
WIN 712 750 1000 200/250/300 800 900 12 41.02W
WIN 713 1000 1000 200/250/300 1050 900 12 45.86W
WIN 714 800 1200 300/400/500 850 1100 12 48.38W
WIN 715 1000 1200 300/400/500 1050 1300 12 66.77W
WIN 716 1000 1400 300/400/500 1050 1300 12 66.77W
