JUNCTION BOX

The Explosion Proof Equipment Solution



BON500 Series ATEXIECEXKCs

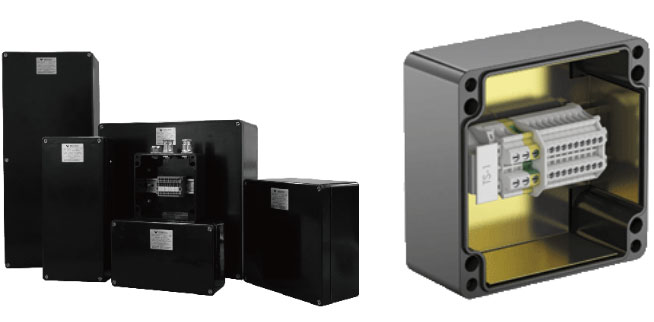

BON500 Series is made of GRP(Glass-fibre Reinforced Polyester) and thus highly environmentally friendly while satisfying explosion proof standards. Like our WIN700(K) series, it can endure in hostile environments(such as offshore, petrochemical sites, and electrical plants) and preserve inner components with optimal condition. Divided into 5 different sizes, BON500 series can contain terminal block(s), cable gland(s), and other accessories upon the customers requistion and provides the best explosion proof solutions for the customers in accordance with the IP and Ex. grades


Material Body & Lid Glass reinforce polyester (GRP)
Finish Black
Gasket Silicone
Lid fixing M6 Stainless Steel
Earthing Min. M6 Internal/External earth stud
Box mounting 4 or 6 mounting pillars with 6.5mm Holes
Ambient Temperature T6 = - 45˚C to +40˚C , T5 = - 45˚C to +55˚C / IECEx
T6 = - 20˚C to +40˚C , T5 = - 20˚C to +55˚C / ATEX
Impact energy 7Nm
Grade Ex eb IIC T6/T5 Gb - IECEX
Ex eb IIC T6/T5 Gb, Ex tb IIIC T85˚C/T100˚C Db IP66 - ATEX



MODEL TYPE OVERALL DIMENSION MOUNTING DIMENSION Max. Power Consumption Remark
W H D W1 H1 Φ
BON506 120 120 91 106 82 6.5 3.62W
BON507 220 120 91 204 82 6.5 4.72W
BON508 160 160 91 140 110 6.5 4.12W
BON509 260 160 91 240 110 6.5 6.79W
BON510 360 160 91 340 110 6.5 8.81W
