SIGNALING DEVICE
The Explosion Proof Equipment Solution

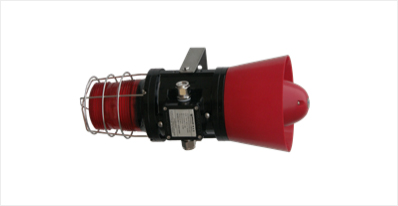

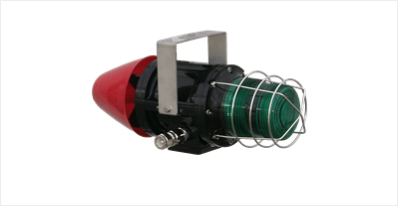

Sounder with Beacon light
SL16A
SL16B
| Type | L16, LL16, S16A, S16B, SS16B, SS16C SL16A, SL16B | |
| Material | Body | Cast Aluminum |
| Globe | PC | |
| Horn | ABS | |
| Gasket | Silicone | |
| Protection Guard | 304SS | |
| Termination | Push in type terminal 2.5㎟ | |
| Cable Entrance | ISO M20 –Maker standard | |
| Earthing | M4 external earth bolt | |
| Sound level | Max. 106dB @ 1m | |
| Sound output | 7(Seven) different signal tones | |
| Sound pattern | Pi(7 short - 1 long), Wing, Pi, Wingwong, Porrorong, Wiwong, Pipo | |
| Light output | LED | |
| Finish | Painted black (Maker Standard) | |
| Protection Grade | II 2 G Ex de IIB T5 IP66/67 Gb | |
| Explosion Proof Approved | IECEx KTL 11.0018X , INERIS 12 ATEX 0018X | |
| Ambient Temperature | -40℃ to +60℃ | |
