SIGNALING DEVICE
The Explosion Proof Equipment Solution

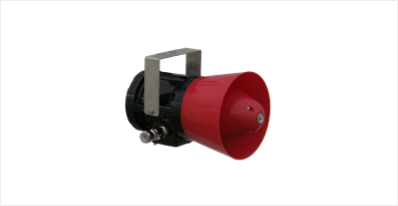

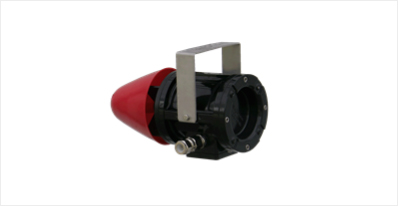

Sounder
S16B
| Type | L16, LL16, S16A, S16B, SS16B, SS16C SL16A, SL16B | |
| Material | Body | Cast Aluminum |
| Globe | PC | |
| Horn | ABS | |
| Gasket | Silicone | |
| Protection Guard | 304SS | |
| Termination | Push in type terminal 2.5㎟ | |
| Cable Entrance | ISO M20 –Maker standard | |
| Earthing | M4 external earth bolt | |
| Sound level | Max. 106dB @ 1m | |
| Sound output | 7(Seven) different signal tones | |
| Sound pattern | Pi(7 short - 1 long), Wing, Pi, Wingwong, Porrorong, Wiwong, Pipo | |
| Light output | LED | |
| Finish | Painted black (Maker Standard) | |
| GRADE | Ex de IIB T5 IP66/67 Gb - IECEX Ex de IIB T5 Gb, Ex tb IIIC T100˚C Db IP66/IP67 - ATEX Ex de IIB T5 - KCs |
|
| Ambient Temperature | -40℃ to +60℃ | |
